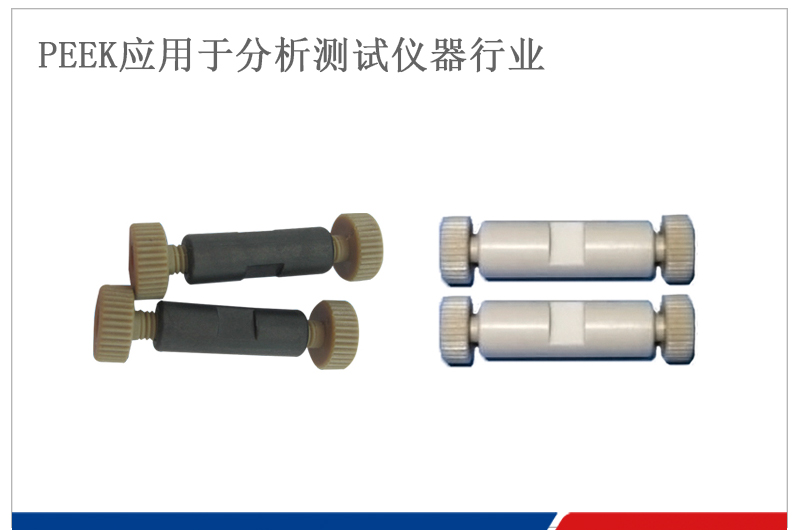

Product Name:PEEKTwo-way, Three-way, Cross-way, Reducer
Material:PEEK5600G
Common Specifications:
Inner Hole:1/16”,1/8”
Thread:10-32UNF,1/4-28, 5/16-24<Special specifications can be customized>
Features and advantages: corrosion resistance, high pressure and high temperature resistance, excellent chemical stability
Detailed introduction:
1,PEEK2-way is convenient for connecting with the connector pipeline, the one-piece connector can be used independently, and the split connector needs to be used with the blade ring
.
2、PEEK2-way has a pressure resistance of nearly 4000 psi(mostHPLCapplication system pressures will not exceed3000psi), and can be used for a long time in a high temperature environment of260℃.
3、PEEK2-way does not need to worry about the solvent resistance of the connector, and is compatible with almost all solvents except concentrated sulfuric acid. It can replace stainless steel in conventional liquid analysis systems.
1.
PEEK two-way is of high purity and contains almost no trace elements. It will not interfere with the test analysis results and will not cause environmental pollution.
