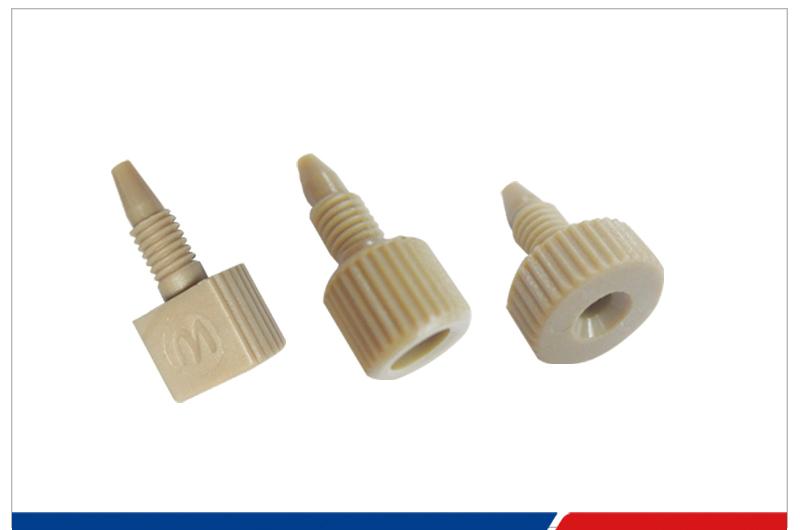

Product Name:PEEKFinger-tight connector
Material Material: PEEK5600G
Common specifications:
Inner hole:1/16”、1/8”
Inch thread:10-32UNF、5/16-24
Metric thread:M6
Head model: Shimadzu big round head, Shimadzu small round head, flat connector (with trademark, without trademark)<Special specifications of connectors can be customized>Features and advantages: corrosion resistance, high pressure and high temperature resistance, excellent chemical stabilityDetailed introduction:1. PEEK connector is convenient for pipeline connection. It does not require tools and can be fixed by hand. It is also easy to adjust the length of the pipeline outside the cone hoop. It can connect PEEK pipes, stainless steel pipes, Teflon pipes, etc.
2.PEEK connectors have a pressure resistance of nearly 4000 psi(most HPLCapplication system pressures will not exceed 3000psi), and can be used for a long time at a high temperature of 260 ℃.
3.PEEK connectors do not need to worry about the solvent resistance of the connectors when using them. They are compatible with almost all solvents except concentrated sulfuric acid.
They can replace stainless steel in conventional liquid analysis systems.
4.PEEK connectors are of high purity and contain almost no trace elements. They will not interfere with the test analysis results or cause environmental pollution.
