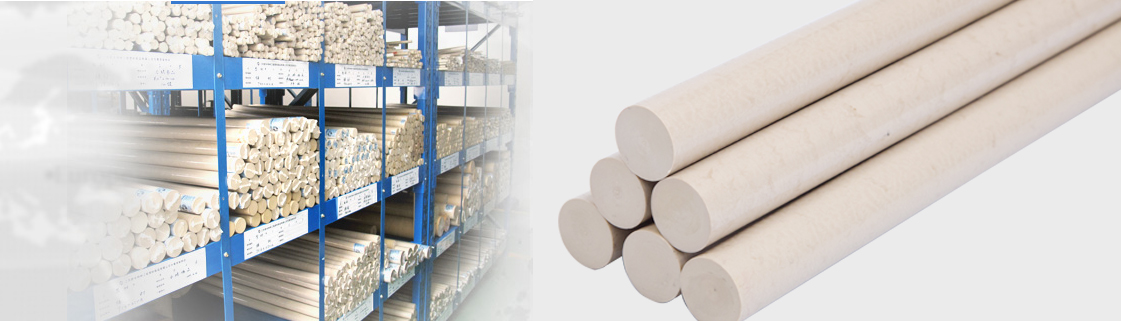

PEEK bar specifications

Bar Specification Table
Serial number	Diameter mm	kg/weight per meter
Serial number	Diameter mm	PEEK5600G	PEEK5600CF30	PEEK5600GF30	PEEK5600LF30
1	5	0.03	0.04	0.04	0.04
2	6	0.05	0.05	0.06	0.06
3	8	0.06	0.07	0.08	0.08
4	10	0.11	0.13	0.14	0.13
5	12	0.16	0.17	0.19	0.18
6	15	0.25	0.27	0.29	0.28
7	16	0.27	0.28	0.31	0.29
8	18	0.36	0.38	0.42	0.39
9	20	0.45	0.45	0.53	0.51
10	22	0.53	0.56	0.61	0.58
11	25	0.67	0.65	0.76	0.72
12	26.7	0.76	0.8	0.88	0.83
13	28	0.84	0.92	1.03	0.95
14	30	0.94	0.97	1.18	1.02
15	32	1.07	1.12	1.29	1.22
16	35	1.35	1.34	1.42	1.35
17	38	1.52	1.66	1.81	1.71
18	40	1.71	1.76	2.02	2.02
19	42	1.91	2.05	2.22	2.11
20	45	2.13	2.32	2.56	2.39
21	48	2.52	2.62	2.85	2.71
22	50	2.66	2.81	3.13	3.14
23	53	2.95	3.15	3.45	3.26
24	55	3.14	3.64	3.72	3.15
25	60	3.95	4.16	4.6	4.21
26	65	4.37	4.76	5.42	4.37
27	70	5.51	5.61	6.23	5.82
28	75	5.99	6.36	6.92	6.54
29	80	7.08	7.61	7.94	7.82
30	85	7.67	8.22	8.81	8.43
31	90	8.33	9.39	10.21	9.67
32	95	9.16	10.13	11.08	10.42
33	96.5	9.66	10.28	11.17	10.64
34	100	10.73	10.81	12.09	11.44
35	110	12.93	12.91	14.59	13.57
36	115	13.53	14.78	16.06	15.22
37	120	15.44	16.42	17.62	16.67
38	125	16.18	17.21	18.73	17.74
39	130	20.08	19.21	21.82	19.57
40	140	20.55	21.66	23.78	22.89
41	150	23.81	26.29	27.64	26.36
42	160	26.85	29.81	33.71	30.67
43	165	29.01	30.18	33.89	31.02
44	170	30.22	32.49	35.04	33.43
45	180	33.99	35.93	38.94	36.88
46	190	37.86	/	/	/
47	200	43.26	/	/	/
48	220	50.79	/	/	/
49	250	65.51	/	/	/
Note: The specific dimensions and weight of the bars are subject to the actual shipment. The above data is for reference only.
