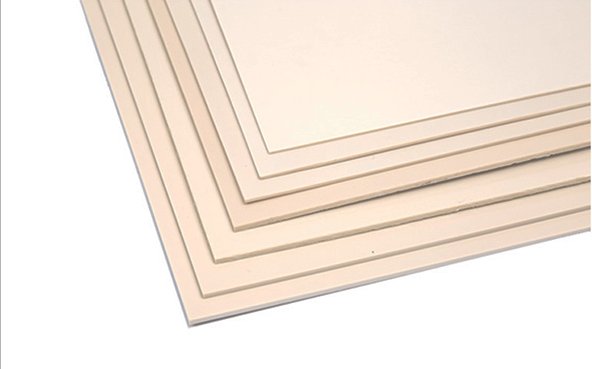

PEEK Sheet (5600G)

Features and advantages: High temperature resistance, wear resistance, corrosion resistance, high strength, easy processing, flame retardancy, low smoke and non-toxic.

Industry trends for products: The use of lightweight PEEK thermoplastic plastics can meet environmental protection requirements, make assembly faster, more reliable, and reduce operating and manufacturing costs.

PEEK continuously extruded sheets have good thickness uniformity and high internal density, and are widely used as machining materials for CNC and other machining processes.

PEEK (polyetheretherketone) sheets possess excellent high-temperature resistance, mechanical strength, and chemical resistance, making them widely used in the electronics, aerospace, and medical fields. Our PEEK sheets are easy to process and suitable for manufacturing high-precision and high-durability components.

◆ Wear resistance: PEEK polymers and their composites exhibit good wear resistance in many extremely harsh application environments such as high temperature, high load, and strong corrosion.

◆ Self-lubricating: It has a low coefficient of friction, enabling oil-free lubrication and long-term operation in media such as oil, water, steam, and weak acids and alkalis.

◆ Corrosion resistance: Insoluble in common solvents, it has good corrosion resistance to various organic and inorganic chemical reagents.

◆ High strength: It has good mechanical strength among plastics. It also has high rigidity and surface hardness.

◆ Easy to process: Parts can be directly manufactured using injection molding. Post-processing such as turning, milling, drilling, tapping, bonding, and ultrasonic welding are also possible.

◆ Hydrolysis resistance: PEEK products can still work continuously for thousands of hours without significant performance degradation when immersed in steam at temperatures exceeding 250°C or in high-pressure water.

◆ Flame retardancy: Without the use of any additives, the flammability rating of a 1.45 mm thick PEEK sample is UL94 V-0.

◆ Low smoke and non-toxic: The amount of smoke and toxic gases produced during combustion is extremely low.

◆ Electrical performance: It maintains stable and excellent electrical performance over a wide range of temperatures and frequencies.

◆ Radiation resistance: It has extremely strong resistance to high dose gamma-ray radiation, and its mechanical properties are completely preserved, making it suitable for use as radiation-resistant parts.

◆ Dimensionally stable

Jiangsu Junhua Co., Ltd. has introduced advanced European PEEK profile extrusion production lines, enabling the extrusion of PEEK sheets with a width of 1250mm. This significantly improves production efficiency, enhances PEEK product quality, ensures on-time delivery, and reduces costs. Currently, the domestic market for extruded PEEK sheets generally suffers from low production capacity. The new equipment imported from Europe and the United States not only improves sheet quality but also greatly increases the company’s production capacity, effectively guaranteeing customers’ on-time delivery requirements.

The extrusion capability allows for PEEK sheets up to 1250mm wide, expanding Jiangsu Junhua’s extrusion sheet width from 600mm to 1250mm, broadening the market and meeting customer demand for ultra-wide PEEK sheets. The 1250mm PEEK sheet satisfies the need for ultra-wide PEEK sheets in industries such as valves for large-size PEEK parts, while also allowing for higher material utilization during machining.

A continuous extrusion production line for PEEK sheets, including PEEK square sheets and PEEK sheets in various specifications, capable of extruding PEEK sheets up to 1250mm wide.

	Material	width	thickness	length	color
	PEEK5600G	600~1250	5-100	1000、3000	Natural color, black
	PEEK5600CF30	600	6~60	1000、3000	black
	PEEK5600LF30	600	6~60	1000、3000	black
	PEEK5600GF30	600	5~60	1000、3000	Natural color, black
	PEEK5600ESD	600	6~60	1000	black
	CF/PEEK	600/1000	2~50	1000、3000	black
