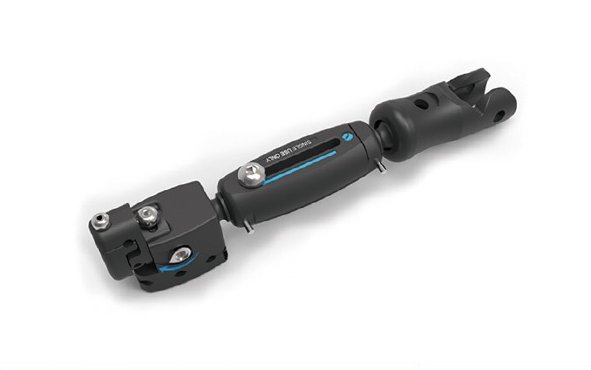

Using PEEK material to completely replace metal, a modular external fixation bracket is manufactured, with only 20 metal components, significantly reducing product weight. X-ray transparency and a simple molding process are two major advantages of high-polymer engineering plastics over alloy materials. Other superior properties include: excellent chemical stability suitable for various sterilization methods, high mechanical strength to meet usage requirements, moderate surface hardness providing a new tactile feel, and a uniquely gentle feel that is more patient-friendly than metal.
● Molding methods: Injection molding, machining;
● Material grade: PEEK5600CF30 (30% carbon fiber reinforced);
● Processing steps: CNC machining, precision engraving, screen printing, heat treatment, assembly;
● Clinical application forms: X-ray transparent tibial support, ring combination support, and light-transparent ankle joint support;
● Features and advantages: Lightweight, simple to operate, various three-dimensional fixing methods, and easy to mold;
● Assembly components: Adjustable slider 1, adjustable slider 2, clamping seat, fixing seat, pressure plate, clamping block, ball head, three types of root bone connecting rods, medical grade stainless steel.
