PEEK exhibits superior overall performance due to the presence of numerous benzene ring structures in its molecules.
PEEK (polyetheretherketone) resin is a high-performance specialty thermoplastic material and one of the most important varieties of commercially available polyaryletherketone resins. Currently, PEEK is widely used in petroleum, food processing, automotive, and aerospace industries due to its excellent electrical, mechanical, high-temperature, and corrosion resistance properties.

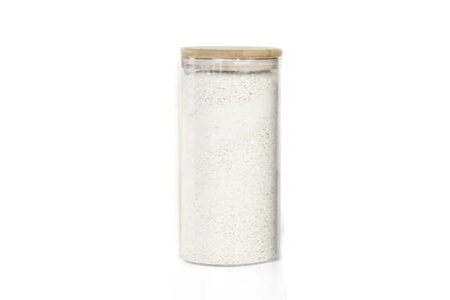

PEEK3600P is a powder with a high melt flow rate. The coarse powder after PEEK polymerization is used as a raw material for fine powder and granulation.
Mechanical properties
| project (Item) | Test Standard or Instrument | unit (Unit) | PEEK3600P |
| Pure resin (100% PEEK) | |||
| Tensile strength (23℃) Tensile strength(23℃) | ISO527-2/1B/50 | MPa | 100 |
| Tensile modulus (23℃) Tensile modulus(23℃ | ISO527-2/1B/51 | GPa | 4.1 |
| Tensile elongation (23℃) Tensile elongation(23℃) | ISO527-2/1B/50 | % | 12 |
| Bending strength (23℃) Bending strength(23℃) | ISO 178 | MPa | 175 |
| Flexural modulus (23℃) Bending modulus(23℃) | ISO 178 | GPa | 4.3 |
| Compressive strength (23℃) Compressive strength(23℃) | ISO 604 | MPa | 125 |
| Impact strength of simply supported beam (without notch) Charpy tched impact strength( no gap) | ISO 179/U | KJ/m2 | 120（No break） |
| Impact strength of cantilever beam (notch) Lzod impact strength | ISO 180/A | KJ/m2 | 4.5 |
thermal properties
| project (Item) | Test standards or instruments (Test Standard or Instrument) | unit (Unit) | PEEK3600P |
| Pure resin (100% PEEK) | |||
| Melting point Melting point | DSC | ℃ | 343 |
| Heat distortion temperature Distortion temperature | ISO 75-1/-2 | ℃ | 157 |
| Continuous operating temperature Continuous using temperature | UL 74685 | ℃ | 260 |
| coefficient of thermal expansion coefficient of thermal expansion | ASTM D696 | ppm K -1 | 46 |
| Flammability rating Flammable level | UL 94 | / | V-0 |
| thermal conductivity Thermal conductivity | ISO 22007 | W/（m·K） | 0.28 |
Electrical performance
| project (Item) | Test standards or instruments (Test Standard or Instrument) | unit (Unit) | PEEK3600P |
| Pure resin (100% PEEK) | |||
| Dielectric strength Dielectric strength | IEC 60243-1 | KV/mm | 18 |
| Dielectric constant Dielectric constant | IEC 60250 | – | 3.2 |
| Surface resistance Surface resistance | IEC 61340 | Oh | 1013 |
| Loss medium Lossy medium | IEC 60251 | – | 0.004 |
Other performance
| project (Item) | Test standards or instruments (Test Standard or Instrument) | unit (Unit) | PEEK3600P |
| Pure resin (100% PEEK) | |||
| color Color | – | True Colors Natural | |
| Real density Density | ISO 1183 | g/cm3 | 1.30 |
| Water absorption rate (25℃.24Hrs) Water Abs. (25℃.24Hrs) | ISO 62 | % | 0.05 |
| Molding shrinkage (25-24℃) Mould shrinking percentage | 3mm thickness, flow direction at 170℃ 3mm,170℃, Flow direction | % | 1.0 |
| Perpendicular to the flow direction | % | 1.3 | |
| Poisson’s ratio Simeom Denis Poisson | ISO 527-2 | 0.4 | |
| Rockwell hardness Rockwell hardness | GB/T 3398.2 | HRR | 118 |
| coefficient of friction Friction coefficient | ASTM D3702 | m | 0.30-0.35 |
| Melt Flow Index Melt flow index | ISO 1133 | g/10min | 40 |
